NetManager Class Reference

Manages all Network related topics, is persistent across scenes, just as the game manager. More...

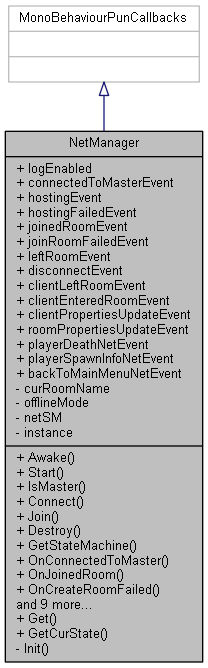

Inheritance diagram for NetManager:

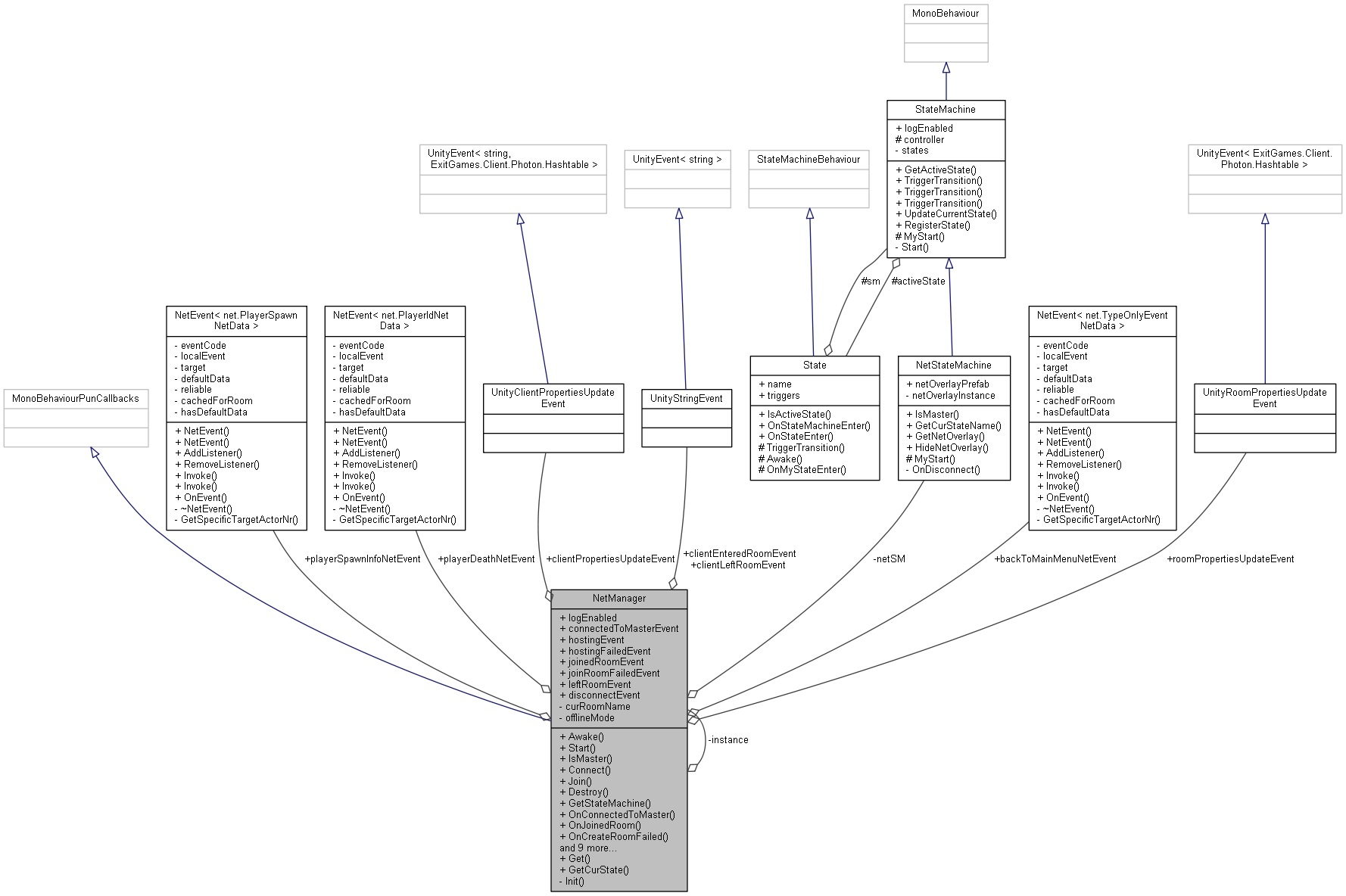

Collaboration diagram for NetManager:

Public Member Functions
void	Awake ()
void	Start ()
bool	IsMaster ()
	Returns whether this client is currently a master. True while Hosting or in OfflineMode.
void	Connect ()
	Main connection function from outside the NET layer. More...
void	Join ()
void	Destroy (GameObject obj, float delay)
NetStateMachine	GetStateMachine ()
override void	OnConnectedToMaster ()
	This is called once we completely joined the master server and can create rooms.
override void	OnJoinedRoom ()
	Called after joining your own or other player's room.
override void	OnCreateRoomFailed (short returnCode, string message)
override void	OnCreatedRoom ()
override void	OnJoinRoomFailed (short returnCode, string message)
override void	OnJoinRandomFailed (short returnCode, string message)
override void	OnLeftRoom ()
override void	OnDisconnected (Photon.Realtime.DisconnectCause cause)
	A Disconnect can be intentional or unintentional. More...
override void	OnPlayerEnteredRoom (Client newClient)
	This callback is only called for other clients joining, not for this client.
override void	OnPlayerLeftRoom (Client client)
override void	OnPlayerPropertiesUpdate (Client target, ExitGames.Client.Photon.Hashtable changedProps)
	Is called whenever the custom data for any client changes. More...
override void	OnRoomPropertiesUpdate (ExitGames.Client.Photon.Hashtable changedProps)

Static Public Member Functions
static NetManager	Get ()
static State	GetCurState ()

Public Attributes
bool	logEnabled

Static Public Attributes
static UnityEvent	connectedToMasterEvent
static UnityEvent	hostingEvent
static UnityEvent	hostingFailedEvent
static UnityEvent	joinedRoomEvent
static UnityEvent	joinRoomFailedEvent
static UnityEvent	leftRoomEvent
static UnityEvent	disconnectEvent
static UnityStringEvent	clientLeftRoomEvent
static UnityStringEvent	clientEnteredRoomEvent
static UnityClientPropertiesUpdateEvent	clientPropertiesUpdateEvent
	The client ID will be 'OfflineClient' in OfflineMode!
static UnityRoomPropertiesUpdateEvent	roomPropertiesUpdateEvent
static NetEvent< PlayerIdNetData >	playerDeathNetEvent
	Sent upon player death in-game. More...
static NetEvent< PlayerSpawnNetData >	playerSpawnInfoNetEvent
static NetEvent< TypeOnlyEventNetData >	backToMainMenuNetEvent

Private Member Functions
void	Init ()

Private Attributes
string	curRoomName = ""
	Current room name this game instance has joined to.
bool	offlineMode
	Current Whether OfflineMode is active or not.
NetStateMachine	netSM = null

Static Private Attributes
static NetManager	instance
	Singleton pattern instance.

Detailed Description

Manages all Network related topics, is persistent across scenes, just as the game manager.

Todo:

: Use Photon "Custom Properties" to sync client info, such as player info and infrequent stuff

Definition at line 30 of file NetManager.cs.

Member Function Documentation

Connect()

void Connect ( )

inline

Main connection function from outside the NET layer.

Moves the Net State Machine to the "Connecting" state if plausible to do so. The detour over 'instance' allows a call of this funcion from an event.

Definition at line 127 of file NetManager.cs.

OnDisconnected()

override void OnDisconnected ( Photon.Realtime.DisconnectCause  cause )

inline

A Disconnect can be intentional or unintentional.

Intentional: Triggered by any of the menus. Unintentional: Can happen at any time!

Definition at line 208 of file NetManager.cs.

OnPlayerLeftRoom()

override void OnPlayerLeftRoom ( Client  client )

inline

Todo:

: We have to take over hosting or something!

Definition at line 232 of file NetManager.cs.

OnPlayerPropertiesUpdate()

override void OnPlayerPropertiesUpdate ( Client  target, ExitGames.Client.Photon.Hashtable  changedProps  )

inline

Is called whenever the custom data for any client changes.

Is also called for the local client if connected or in active Offline Mode. In order to decouple the net management from the specifics of the game, no assumptions are made at this point on the content. Also an event with the data is raised so users of the NET layer subscribe to it, rather than being pushed.

Definition at line 246 of file NetManager.cs.

Member Data Documentation

playerDeathNetEvent

NetEvent<PlayerIdNetData> playerDeathNetEvent

static

Sent upon player death in-game.

Todo:

: Communicate via custom property 'state' (alive, dead, not playing)

Definition at line 57 of file NetManager.cs.

---

The documentation for this class was generated from the following file:

• C:/Users/Toni/Documents/Programming/Unity/BomberUnits/Assets/Scripts/Net/NetManager.cs
