The GameStateMachine holds the overall program state, transitioning through menu, in-game, paused etc. More...

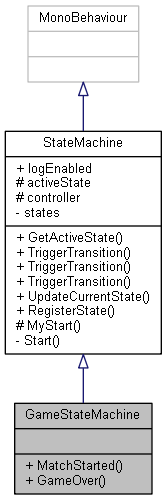

Inheritance diagram for GameStateMachine:

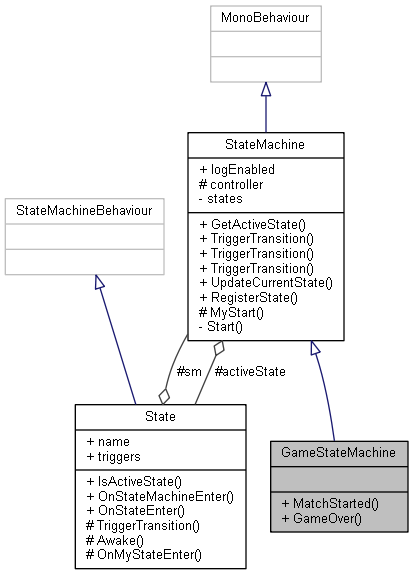

Collaboration diagram for GameStateMachine:

Public Member Functions
void	MatchStarted ()
	Transition access for external use, set by the MatchManager upon Match start. More...

void	GameOver ()
	Transition access for external use, set by the MatchManager upon Match end.

Public Member Functions inherited from StateMachine
State	GetActiveState ()
	Returns a reference to the currently active state.

void	TriggerTransition (string transName)
	Overload to enable external transition triggering from current state. More...

void	TriggerTransition (string fromState, string transName)
	Overload to enable external transition triggering using state and transition names. More...

void	TriggerTransition (State fromState, string transName)
	Attempts to execute the given transition. More...

void	UpdateCurrentState (State stateRef)
	Used bu all States to announce themselves as currently active state when entered.

void	RegisterState (State state)
	Used by all States to register themselves at the SM during startup. More...

Additional Inherited Members
Public Attributes inherited from StateMachine
bool	logEnabled

Protected Member Functions inherited from StateMachine
virtual void	MyStart ()
	Override to provide an extended Start function for subclasses. Do not override 'Start()' itself!

Protected Attributes inherited from StateMachine
State	activeState = null
	Holds a reference to the current active state.

Animator	controller = null
	Reference to the Unity (Animation) mechanism for SM design.

Detailed Description

The GameStateMachine holds the overall program state, transitioning through menu, in-game, paused etc.

For an overview of state and trigger names, see the Unity Animator view of the SM.

Definition at line 9 of file GameStateMachine.cs.

Member Function Documentation

void MatchStarted ( )

inline

Transition access for external use, set by the MatchManager upon Match start.

Todo:: : There should be an initial Pre-Match phase, where stuff and clients load.

Definition at line 15 of file GameStateMachine.cs.

The documentation for this class was generated from the following file:

C:/Users/Toni/Documents/Programming/Unity/BomberUnits/Assets/Scripts/StateMachines/GameSM/GameStateMachine.cs
