StateMachine Class Reference

Common Base class for all state machines. More...

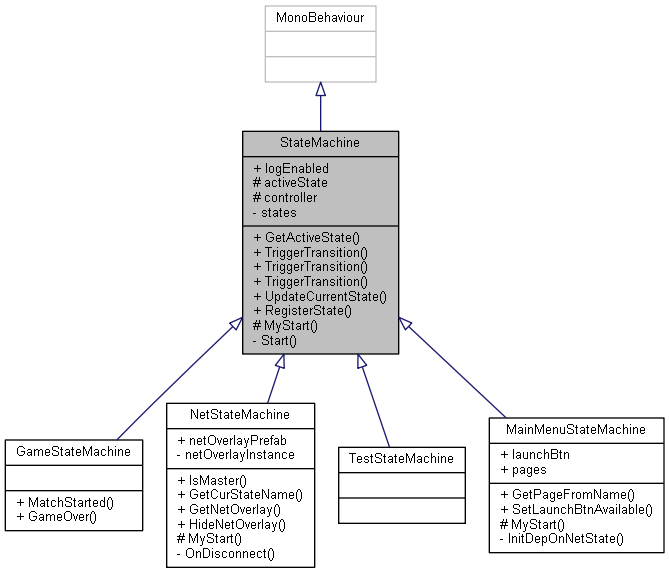

Inheritance diagram for StateMachine:

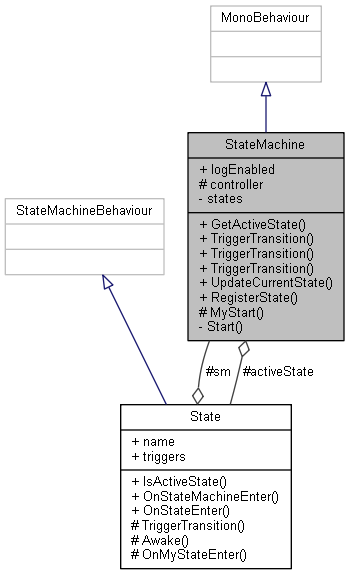

Collaboration diagram for StateMachine:

Public Member Functions
State	GetActiveState ()
	Returns a reference to the currently active state.
void	TriggerTransition (string transName)
	Overload to enable external transition triggering from current state. More...
void	TriggerTransition (string fromState, string transName)
	Overload to enable external transition triggering using state and transition names. More...
void	TriggerTransition (State fromState, string transName)
	Attempts to execute the given transition. More...
void	UpdateCurrentState (State stateRef)
	Used bu all States to announce themselves as currently active state when entered.
void	RegisterState (State state)
	Used by all States to register themselves at the SM during startup. More...

Public Attributes
bool	logEnabled

Protected Member Functions
virtual void	MyStart ()
	Override to provide an extended Start function for subclasses. Do not override 'Start()' itself!

Protected Attributes
State	activeState = null
	Holds a reference to the current active state.
Animator	controller = null
	Reference to the Unity (Animation) mechanism for SM design.

Private Member Functions
void	Start ()
	Callback is used to provide the state registering mechanism. More...

Private Attributes
List< State >	states = new List<State>()
	The list of available states within this SM.

Detailed Description

Common Base class for all state machines.

Implementing subclasses may use the public interface, as well as the provided start method: MyStart() The reference to the animator's controller is initialized by this class.

Definition at line 8 of file StateMachine.cs.

Member Function Documentation

RegisterState()

void RegisterState ( State  state )

inline

Used by all States to register themselves at the SM during startup.

Not to be used for other purposes than the SM plumbing layer.

Definition at line 82 of file StateMachine.cs.

Start()

void Start ( )

inlineprivate

Callback is used to provide the state registering mechanism.

Do not override! A replacing 'MyStart()' function is provided!

Definition at line 102 of file StateMachine.cs.

TriggerTransition() [1/3]

void TriggerTransition ( string  transName )

inline

Overload to enable external transition triggering from current state.

Use with care, as having to explicitly give the state to transition from is safer!

Definition at line 34 of file StateMachine.cs.

TriggerTransition() [2/3]

void TriggerTransition ( string  fromState, string  transName  )

inline

Overload to enable external transition triggering using state and transition names.

Checks whether the given state name exists.

Definition at line 41 of file StateMachine.cs.

TriggerTransition() [3/3]

void TriggerTransition ( State  fromState, string  transName  )

inline

Attempts to execute the given transition.

Will throw a warning and abort if the transition is not applicable for the given state, or the state is not the currently active state.

Definition at line 56 of file StateMachine.cs.

---

The documentation for this class was generated from the following file:

• C:/Users/Toni/Documents/Programming/Unity/BomberUnits/Assets/Scripts/Helpers/StateMachine.cs
